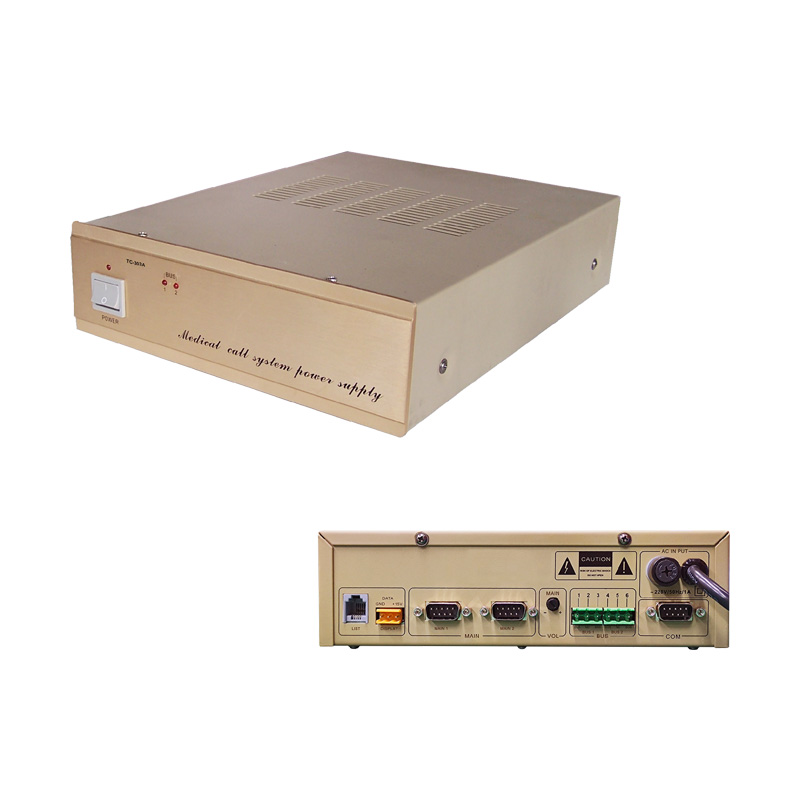

System Data Processor TC-303AE

● Centralized power supply for the system

● Voice and data exchange

● Optional public address (PA) function

● Supports 'one-drag-two' function (note: refers to one processor driving two subordinate devices)

● Can connect to multiple corridor display screens

● Supports long-term continuous operation

●For two-core bus systems

●Technical Parameters:

   Input Voltage: AC220V 50Hz

   Static Power Consumption: 20W

   Bus Voltage: 15V

● Operating Conditions: Ambient Temperature -10~60℃, Relative Humidity ≤80%

● Overall Dimensions: 215×285×70mm

● Installation Instruction: Installed on the nurse station workbench. A dedicated AC 220V power socket is required, which should adopt a single-circuit design. If conditions permit, it should be integrated into the hospital's UPS system
